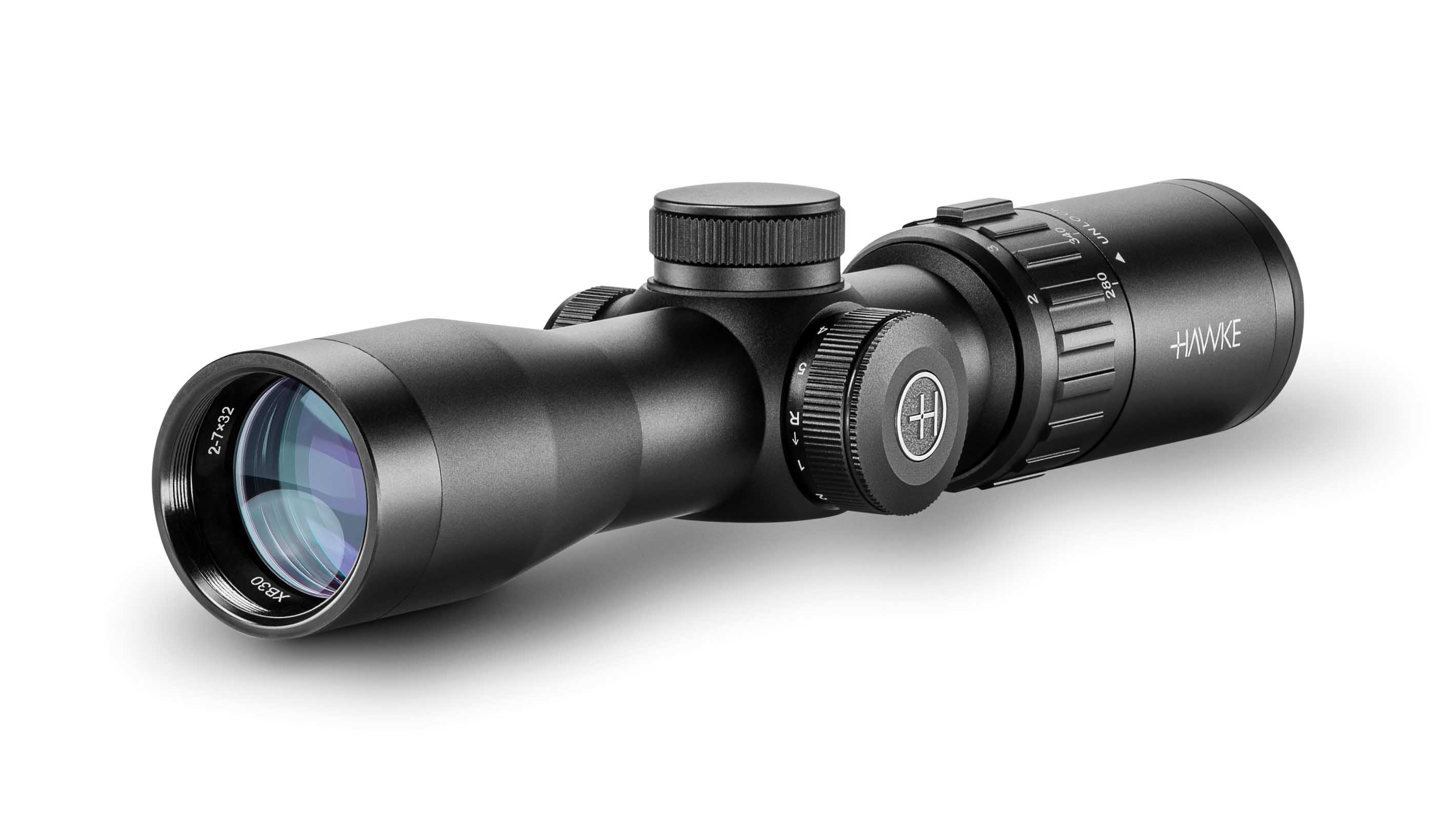

XB30 2-7x32 SR

Model: 12224
Barcode/EAN: 5054492122240

Availability:



No stock, delayed despatch

€199.00
SHOP LOCALLY - WHERE TO BUY
Hawke Logo - Roundal

XB30 2-7x32 SR

BUY NOW
Model:  12224
Bar Code:  5054492122240
Calibrated For 280fps - 440fps

We didn't invent crossbow scopes... We perfected them.

Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Illumination
  • 1⁄2 MOA low-profile fingertip turrets
  • Fixed parallax at 45 metres
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • Suitable speeds 280fps - 440fps

Nitrogen purged. Shockproof. Waterproof. Fog proof.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • Flip-Up Lens Covers
  • CR2032 Battery
View all Crossbow Scopes
Product Type:  Crossbow Scope
Product Range:  XB30
Objective Lens:  32mm
Reticle:  XB30 SR
Parallax:  Fixed
Magnification:  2 - 7x
Optical System:  System H2
Focal Plane:  SFP (Second Focal Plane)
Scope Tube:  30mm
Illumination:  5 Levels - Red/Green
Field of View (ft@100yds):  53.8 - 17.4
Field of View (m@100m):  17.9 - 5.8
Field of View (°):  10.2 - 3.3
Eye Relief (in):  4
Eye Relief (mm):  102
PX/Focus (yds):  50
PX/Focus (m):  46
Exit Pupil (mm):  16 - 4.6
Exit Pupil (in):  0.63 - 0.18
Turret Type:  Capped
Turret Caps:  YES
Click Value:  1/2 MOA
Elevation Turret Clicks (max):  215 MOA
Windage Turret Clicks (max):  195 MOA
Ocular Type:  Fast Focus
Power Selector:  Locking Speed Adjuster
Lens Coating:  Fully Multi-Coated
Calibration (Speed):  280fps - 440fps
Length (in):  9.4
Length (mm):  239
Weight (oz):  14.4
Weight (g):  407
