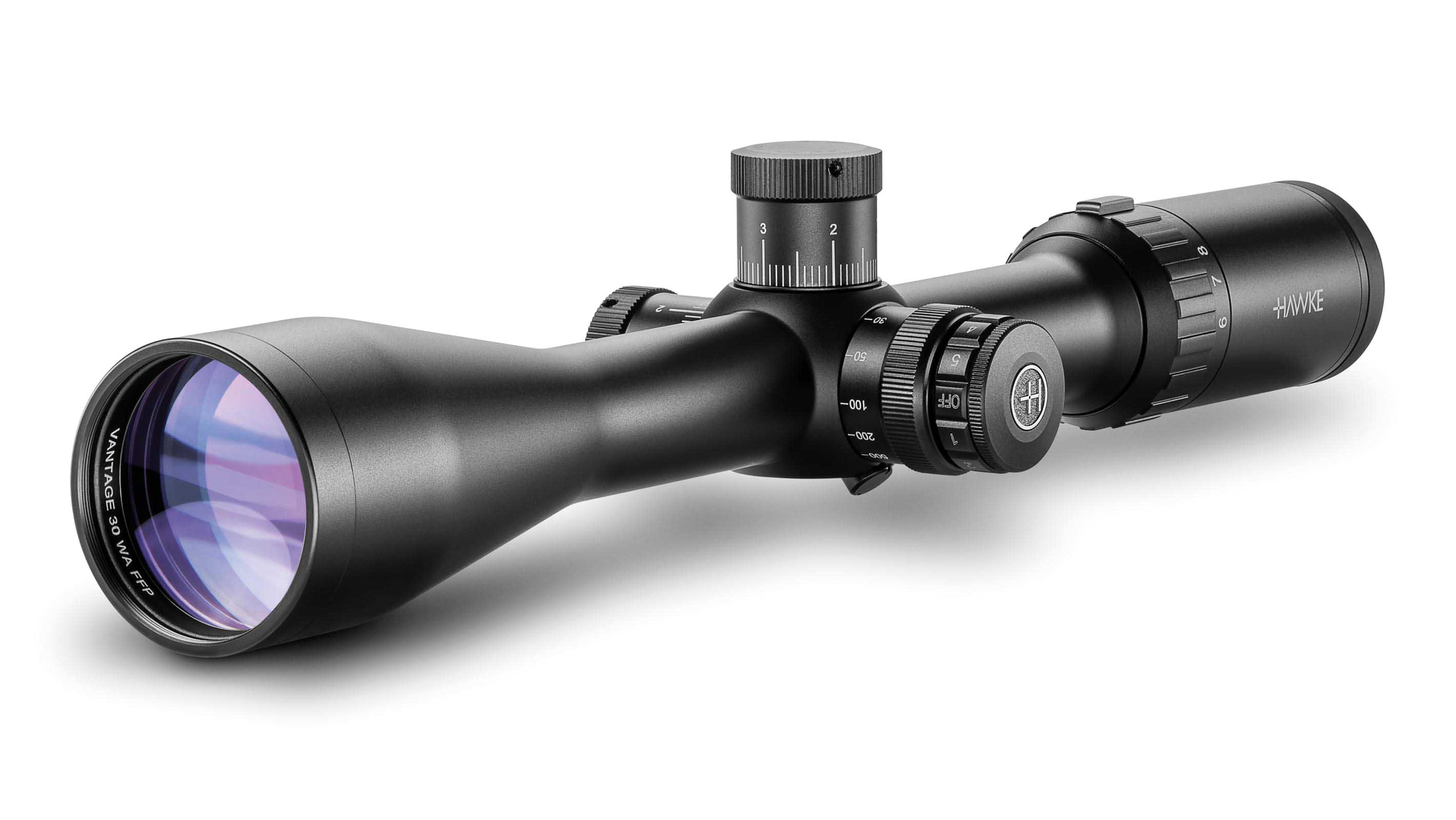

Vantage 30 WA FFP 6-24x50 Half Mil Dot IR

Model: 14304
Barcode/EAN: 5054492143047

Availability



No stock, delayed despatch

€0.00
Hawke Logo - Roundal

Vantage 30 WA FFP 6-24x50 Half Mil Dot IR

BUY NOW
Model:  14304
Bar Code:  5054492143047

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Exposed Locking Turrets
  • First Focal Plane (FFP)
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


Length:
378mm
14.9"
Weight:
755g
26.6oz
Eye relief:
90mm
3.5"
Focus/Parallax - Side Focus
9m - ∞
10yds - ∞
Field of View:
7.0 - 1.8m @100m
21.0 - 5.2ft @100yds
Exit Pupil:
8.3-2.1mm
0.33-0.88"
Chassis
30mm Mono-tube
Optical System
6-24x
Objective
50mm
Illumination
Red / Green
Reticle
FFP Half Mil Dot
Elevation Increment
1⁄10 MRAD
Elevation Adjustment Range:
17 MRAD
Windage Increment
1⁄10 MRAD
Windage Adjustment Range
17 MRAD
Material
Aluminium
Ocular Type
Fast Focus
Lens Coating
Fully Multi-Coated - 11 Layers
Power Selector Style
Knurled Posi-Grip
Focal Plane
First Focal Plane (FFP)
Turret Caps
No
Turret Type
Exposed, Locking
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Riflescope Alignment Booklet
  • Lens Covers
  • Lens Cloth
Product Type  Riflescope
Product Range  Vantage 30 WA FFP IR
Objective Lens  50mm
Reticle  FFP Half Mil Dot
Parallax  Side Focus
Magnification  6 - 24x
Optical System  System H2
Focal Plane  FFP (First Focal Plane)
Scope Tube  30mm
Illumination  5 Levels - Red/Green
Field of View (ft@100yds)  21.0 - 5.2
Field of View (m@100m)  7 - 1.7
Field of View ()  4 - 1
Eye Relief (in)  3.5
Eye Relief (mm)  90
PX/Focus (yds)  10 - ∞
PX/Focus (m)  9 - ∞
Exit Pupil (mm)  8.3 - 2.1
Exit Pupil (in)  0.33 - 0.08
Weight (oz)  26.6
Weight (g)  755
Length (in)  14.9
Length (mm)  378
Turret Type  Exposed
Turret Caps  N/A
Click Value  1/10 MRAD
Elevation Turret Clicks (max)  17 MRAD
Windage Turret Clicks (max)  17 MRAD
Ocular Type  Fast Focus
Power Selector  Knurled Posi-Grip
Lens Coating  Fully Multi-Coated - 11 Layers
