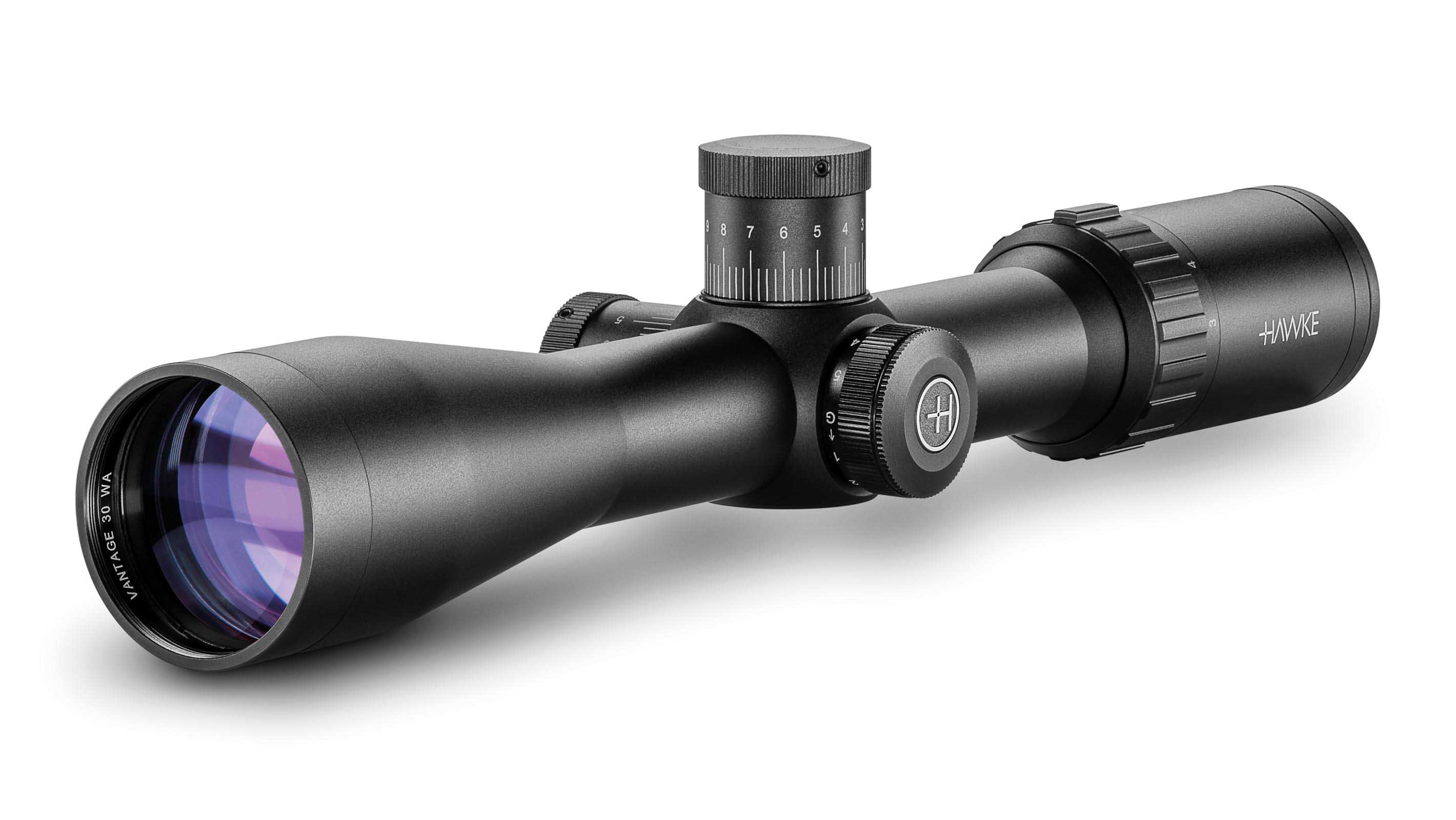

Vantage 30 WA 3-9x42 223/308

Model: 14277
Barcode: 5054492142774
No stock, delayed despatch
€0.00

Vantage 30 WA 3-9x42 223/308

Model:
14277
Barcode:
5054492142774
€0.00

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Exposed Locking Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
Product Type
Riflescope
Product Range
Vantage 30 WA IR
Objective Lens
42mm
Reticle
.223/.308 Marksman (9x)
Parallax
Fixed
Magnification
3 - 9x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels - Red/Green
Field of View (ft@100yds)
42.2 - 13.1
Field of View (m@100m)
14.1 - 4.4
Field of View (°)
8 - 2.5
Eye Relief (in)
3.5
Eye Relief (mm)
90
PX/Focus (yds)
100
PX/Focus (m)
91
Exit Pupil (mm)
14 - 4.7
Exit Pupil (in)
0.55 - 0.19
Turret Type
Exposed
Turret Caps
N/A
Click Value
1/4 MOA
Elevation Turret Clicks (max)
120 MOA
Windage Turret Clicks (max)
120 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers
Length (in)
13
Length (mm)
329
Weight (oz)
19.9
Weight (g)
565
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Covers
  • Lens Cloth
  • CR2032 Battery
