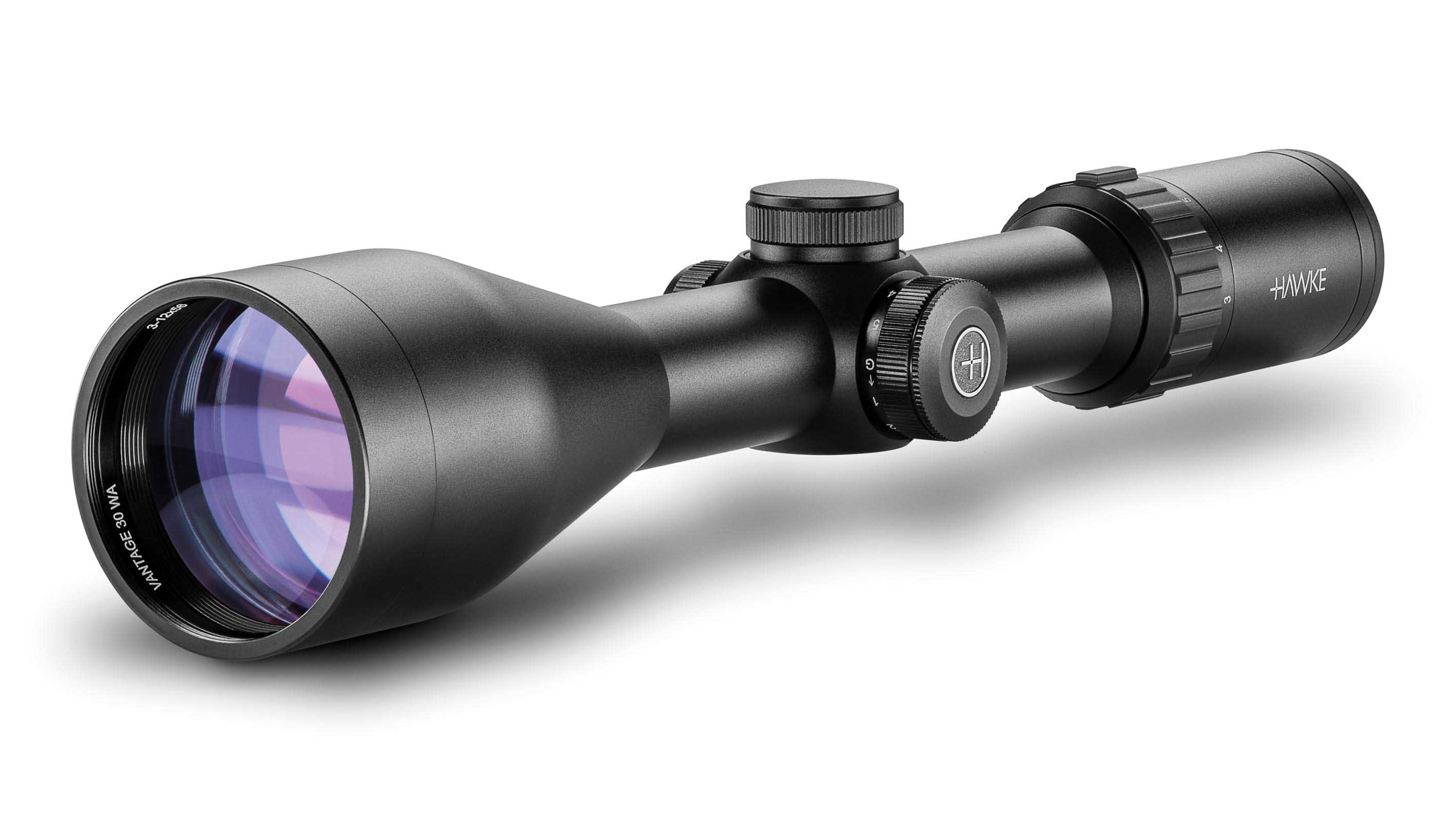

Vantage 30 WA 3-12x56 L4A Dot

Model: 14275
Barcode/EAN: 5054492142750

Availability



No stock, delayed despatch

€249.99
Hawke Logo - Roundal

Vantage 30 WA 3-12x56 L4A Dot

BUY NOW
Model:  14275
Bar Code:  5054492142750

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


Length:
341mm
11.8"
Weight:
669g
23.6oz
Eye relief:
90mm
3.5"
Focus/Parallax - Fixed Focus
91m
100yds
Field of View:
14.3-3.6m @100m
42.8-10.8ft @100yds
Exit Pupil:
18-5mm
0.7-0.2"
Chassis
30mm Mono-tube
Optical System
3-12x
Objective
56mm
Illumination
Red / Green
Reticle
L4A Dot
Elevation Increment
1⁄4 MOA
Elevation Adjustment Range:
60 MOA
Windage Increment
1⁄4 MOA
Windage Adjustment Range
60 MOA
Material
Aluminium
Ocular Type
Fast Focus
Lens Coating
Fully Multi-Coated - 11 Layers
Power Selector Style
Knurled Posi-Grip
Focal Plane
Second Focal Plane (SFP)
Turret Caps
Yes
Turret Type
Low Profile
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Riflescope Alignment Booklet
  • Lens Covers
  • Lens Cloth
  • CR2032 Battery
Product Type  Riflescope
Product Range  Vantage 30 WA IR
Objective Lens  56mm
Reticle  L4A Dot
Parallax  Fixed
Magnification  3 - 12x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  30mm
Illumination  5 Levels - Red/Green
Field of View (ft@100yds)  43.8 - 11.4
Field of View (m@100m)  14.6 - 3.8
Field of View ()  8.3 - 2.2
Eye Relief (in)  3.5
Eye Relief (mm)  90
PX/Focus (yds)  100
PX/Focus (m)  91
Exit Pupil (mm)  18.7 - 4.7
Exit Pupil (in)  0.74 - 0.19
Weight (oz)  23.6
Weight (g)  669
Length (in)  13.4
Length (mm)  341
Turret Type  Capped
Turret Caps  YES
Click Value  1/4 MOA
Elevation Turret Clicks (max)  100 MOA
Windage Turret Clicks (max)  100 MOA
Ocular Type  Fast Focus
Power Selector  Knurled Posi-Grip
Lens Coating  Fully Multi-Coated - 11 Layers
