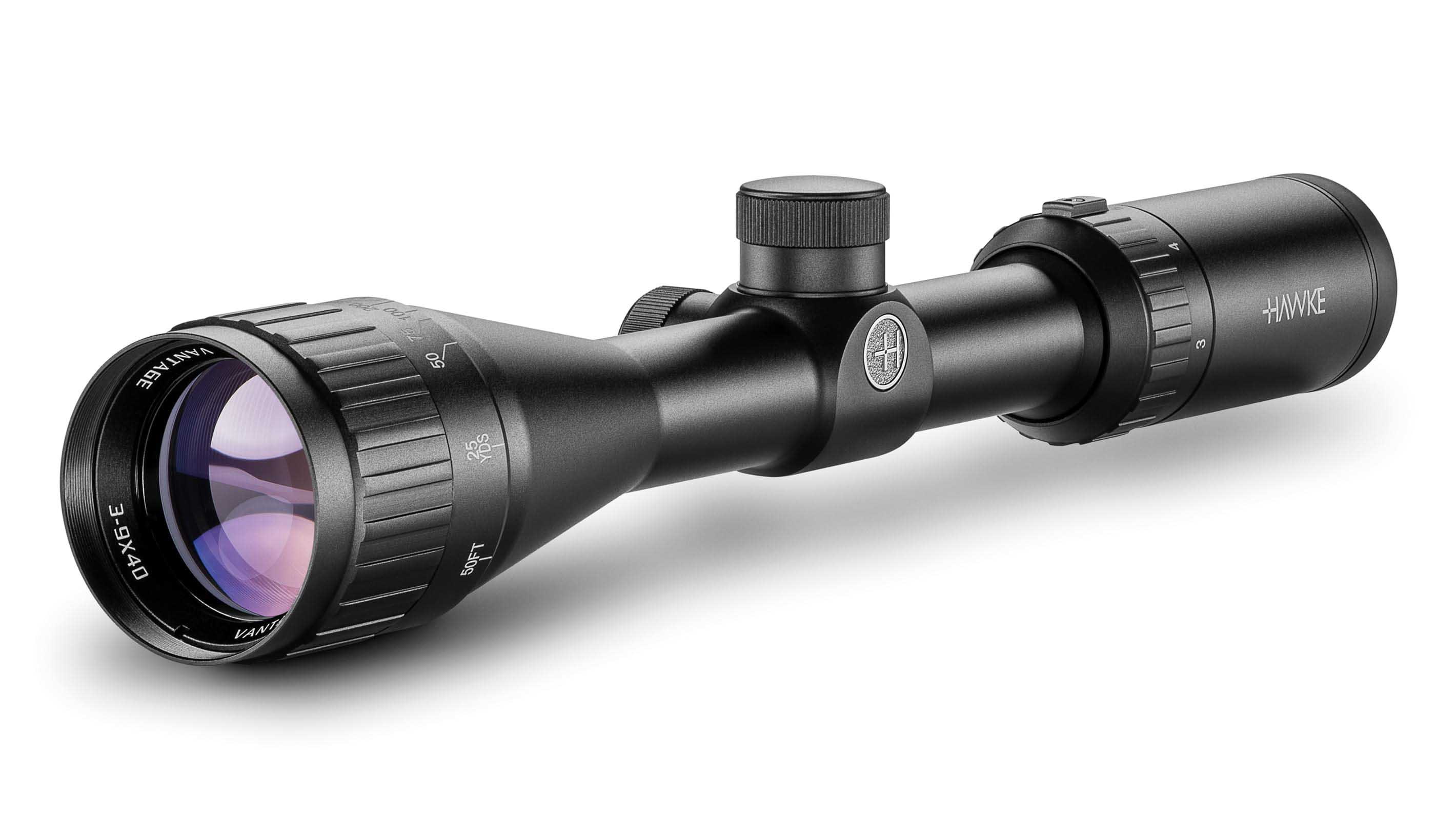

Vantage 3-9x40 AO 30/30 Duplex

Model: 14122
Barcode/EAN: 5054492141227

Availability:



No stock, delayed despatch

€72.99
Hawke Logo - Roundal

Vantage 3-9x40 AO 30/30 Duplex

BUY NOW
Model:  14122
Bar Code:  5054492141227

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Adjustable objective for parallax correction
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Covers
  • Lens Cloth
Product Type:  Riflescope
Product Range:  Vantage
Objective Lens:  40mm
Reticle:  30/30 Duplex
Parallax:  Adjustable Objective
Magnification:  3 - 9x
Optical System:  System H2
Focal Plane:  SFP (Second Focal Plane)
Scope Tube:  1 Inch
Illumination:  N/A
Field of View (ft@100yds):  39 - 12.7
Field of View (m@100m):  13 - 4.2
Field of View ():  7.4 - 2.4
Eye Relief (in):  3.5
Eye Relief (mm):  90
PX/Focus (yds):  10 - ∞
PX/Focus (m):  9 - ∞
Exit Pupil (mm):  13.3 - 4.4
Exit Pupil (in):  0.52 - 0.17
Turret Type:  Capped
Turret Caps:  YES
Click Value:  1/4 MOA
Elevation Turret Clicks (max):  100 MOA
Windage Turret Clicks (max):  100 MOA
Ocular Type:  Fast Focus
Power Selector:  Knurled Posi-Grip
Lens Coating:  Fully Multi-Coated - 11 Layers
Length (in):  12.7
Length (mm):  322
Weight (oz):  17
Weight (g):  482
