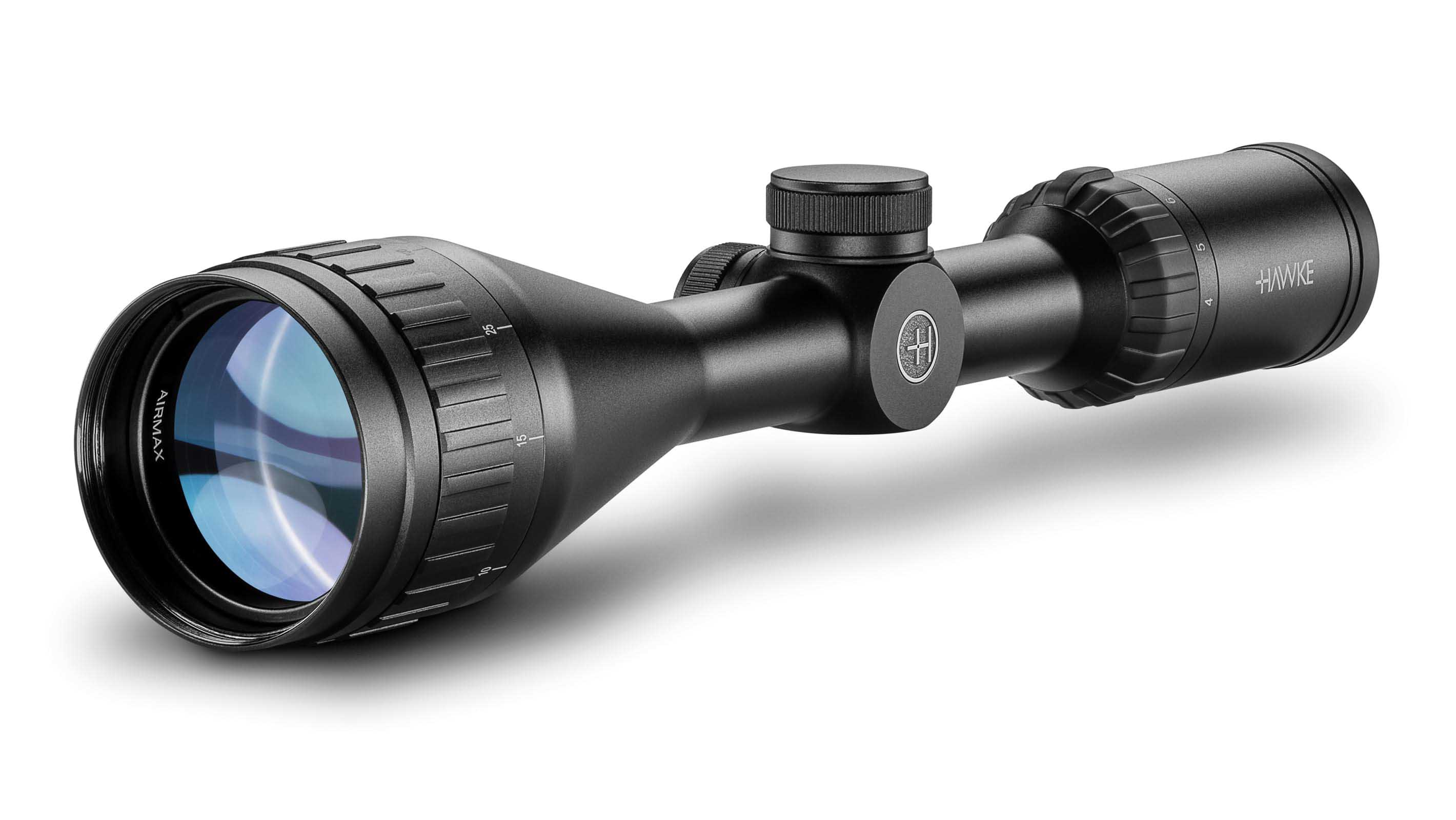

Airmax 4-12x50 AO AMX

Model: 13140
Barcode/EAN: 5054492131402

Availability:



No stock, delayed despatch

€179.99
Hawke Logo - Roundal

Airmax 4-12x50 AO AMX

BUY NOW
Model:  13140
Bar Code:  5054492131402

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Wide Angle
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • Lens Covers
Product Type:  Riflescope
Product Range:  Airmax WA
Objective Lens:  50mm
Reticle:  AMX
Parallax:  Adjustable Objective
Magnification:  4 - 12x
Optical System:  System H2
Focal Plane:  SFP (Second Focal Plane)
Scope Tube:  1 Inch
Illumination:  N/A
Field of View (ft@100yds):  29.9 - 11
Field of View (m@100m):  10 - 3.7
Field of View (°):  5.7 - 2.1
Eye Relief (in):  3.5
Eye Relief (mm):  90
PX/Focus (yds):  10 - ∞
PX/Focus (m):  9 - ∞
Exit Pupil (mm):  12.5 - 4.2
Exit Pupil (in):  0.49 - 0.17
Turret Type:  Capped
Turret Caps:  YES
Click Value:  1/4 MOA
Elevation Turret Clicks (max):  70 MOA
Windage Turret Clicks (max):  70 MOA
Ocular Type:  Fast Focus
Power Selector:  Rubber Coated Posi-Grip
Lens Coating:  Fully Multi-Coated - 16 Layers
Length (in):  13
Length (mm):  329
Weight (oz):  21.9
Weight (g):  620
