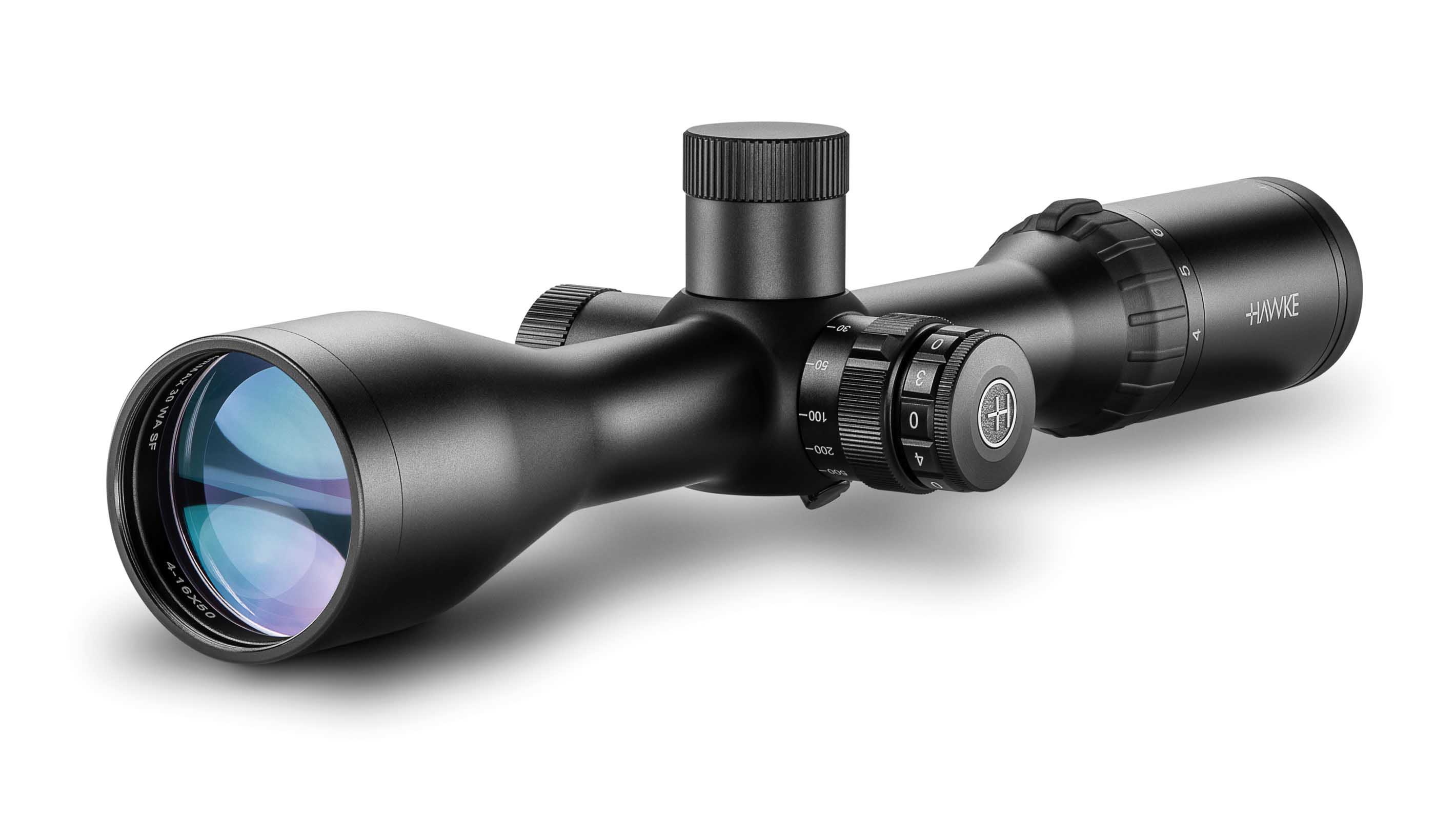

Airmax 30 WA SF 4-16x50 AMX IR

Model: 13311
Barcode/EAN: 5054492133116

Availability:



No stock, delayed despatch

€329.00
Hawke Logo - Roundal

Airmax 30 WA SF 4-16x50 AMX IR

BUY NOW
Model:  13311
Bar Code:  5054492133116

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • 4" Sunshade
  • Metal Flip-Up Lens Covers
  • Flip-Up Removal Tool
  • 4" Sidewheel
  • Hex Key
  • CR2032 Battery
Product Type:  Riflescope
Product Range:  Airmax 30 WA SF
Objective Lens:  50mm
Reticle:  AMX IR
Parallax:  Side Focus
Magnification:  4 - 16x
Optical System:  System H2
Focal Plane:  SFP (Second Focal Plane)
Scope Tube:  30mm
Illumination:  6 Levels with Off Positions In-between - Red
Field of View (ft@100yds):  30.7 - 7.7
Field of View (m@100m):  10.2 - 2.6
Field of View ():  5.8 - 1.5
Eye Relief (in):  4
Eye Relief (mm):  102
PX/Focus (yds):  10 - ∞
PX/Focus (m):  9 - ∞
Exit Pupil (mm):  12.5 - 3.1
Exit Pupil (in):  0.49 - 0.12
Turret Type:  Target
Turret Caps:  YES
Click Value:  1/10 MRAD
Elevation Turret Clicks (max):  27 MRAD
Windage Turret Clicks (max):  27 MRAD
Ocular Type:  Fast Focus
Power Selector:  Rubber Coated Posi-Grip
Lens Coating:  Fully Multi-Coated - 16 Layers
Length (in):  13.7
Length (mm):  348
Weight (oz):  26.8
Weight (g):  760
