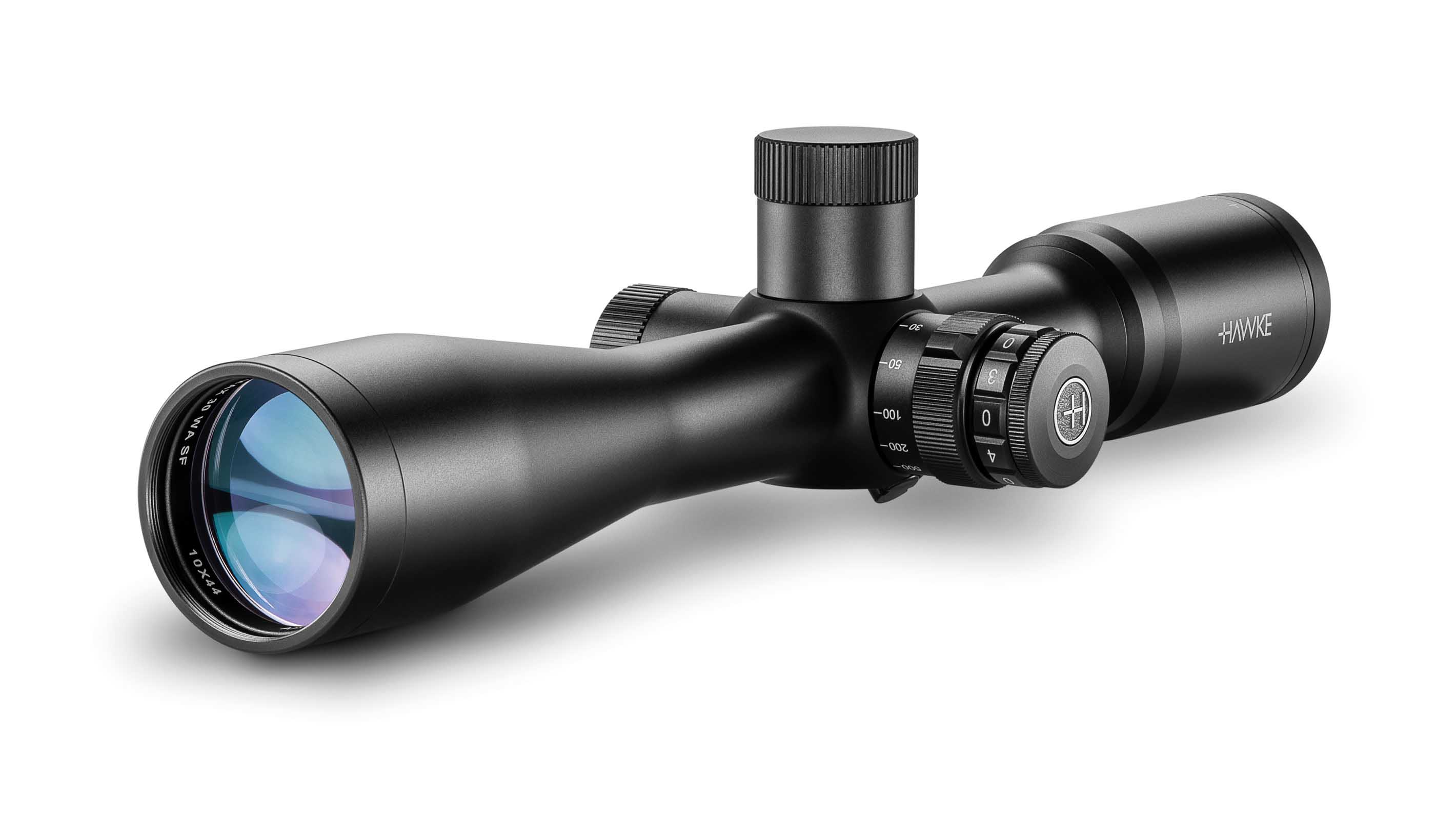

Airmax 30 WA SF 10x44 AMX IR

Model: 13305
Barcode/EAN: 5054492133055

Availability



No stock, delayed despatch

€319.00
Hawke Logo - Roundal

Airmax 30 WA SF 10x44 AMX IR

BUY NOW
Model:  13305
Bar Code:  5054492133055

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


Length:
330mm
13"
Weight:
640g
22.6oz
Eye relief:
102mm
4"
Focus/Parallax - Side Focus
9m - ∞
10yds - ∞
Field of View:
4.0m @100m
12.0ft @100yds
Exit Pupil:
4.4mm
0.17"
Chassis
30mm Mono-tube
Optical System
10x
Objective
44mm
Illumination
Red (6 Levels With Off Positions In-Between)
Reticle
AMX IR
Elevation Increment
1⁄10 MRAD
Elevation Adjustment Range:
16 MRAD
Windage Increment
1⁄10 MRAD
Windage Adjustment Range
16 MRAD
Material
Aluminium
Ocular Type
Fast Focus
Lens Coating
Fully Multi-Coated - 16 Layers
Power Selector Style
Knurled Posi-Grip
Focal Plane
Second Focal Plane (SFP)
Turret Caps
Yes
Turret Type
Capped Target Turrets
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Riflescope Alignment Booklet
  • Lens Cloth
  • 4" Sunshade
  • Metal Flip-Up Lens Covers
  • Flip-Up Removal Tool
  • 4" Sidewheel
  • Hex Key
  • CR2032 Battery
Product Type  Riflescope
Product Range  Airmax 30 WA SF
Objective Lens  44mm
Reticle  AMX IR
Parallax  Side Focus
Magnification  10x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  30mm
Illumination  6 Levels with Off Positions In-between - Red
Field of View (ft@100yds)  12
Field of View (m@100m)  4
Field of View ()  2.3
Eye Relief (in)  4
Eye Relief (mm)  102
PX/Focus (yds)  10 - ∞
PX/Focus (m)  9 - ∞
Exit Pupil (mm)  4.4
Exit Pupil (in)  0.17
Weight (oz)  22.6
Weight (g)  640
Length (in)  13
Length (mm)  330
Turret Type  Target
Turret Caps  YES
Click Value  1/10 MRAD
Elevation Turret Clicks (max)  16 MRAD
Windage Turret Clicks (max)  16 MRAD
Ocular Type  Fast Focus
Power Selector  Rubber Coated Posi-Grip
Lens Coating  Fully Multi-Coated - 16 Layers
