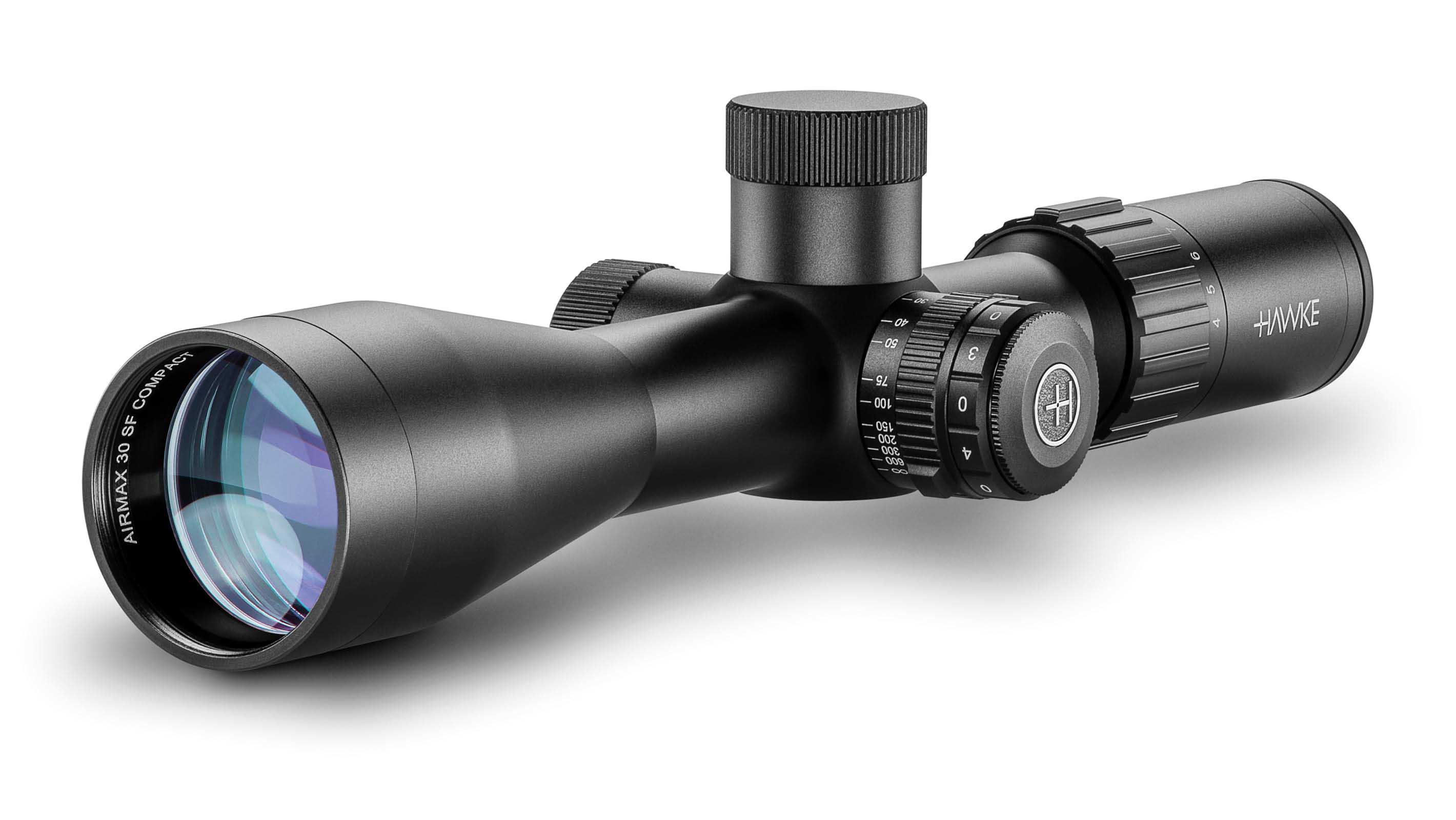

Airmax 30 SF Compact 4-16x44 AMX IR

Model: 13210
Barcode/EAN: 5054492132102

Availability



No stock, delayed despatch

€299.99
Hawke Logo - Roundal

Airmax 30 SF Compact 4-16x44 AMX IR

BUY NOW
Model:  13210
Bar Code:  5054492132102

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


Length:
296mm
11.7"
Weight:
621g
21.9oz
Eye relief:
76mm
3"
Focus/Parallax - Side Focus
9m - ∞
10yds - ∞
Field of View:
10.9 - 2.7m @100m
32.8 - 8.2ft @100yds
Exit Pupil:
11-2.8mm
0.43-0.11"
Chassis
30mm Mono-tube
Optical System
4-16x
Objective
44mm
Illumination
Red
Reticle
AMX IR
Elevation Increment
1⁄10 MRAD
Elevation Adjustment Range:
20 MRAD
Windage Increment
1⁄10 MRAD
Windage Adjustment Range
20 MRAD
Material
Aluminium
Ocular Type
Fast Focus
Lens Coating
Fully Multi-Coated - 16 Layers
Power Selector Style
Knurled Posi-Grip
Focal Plane
Second Focal Plane (SFP)
Turret Caps
Yes
Turret Type
Capped Target Turrets
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Lens Covers
  • 3" Sidewheel
  • CR2032 Battery
Product Type  Riflescope
Product Range  Airmax 30 WA SF Compact
Objective Lens  44mm
Reticle  AMX IR
Parallax  Side Focus
Magnification  4 - 16x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  30mm
Illumination  6 Levels with Off Positions In-between - Red
Field of View (ft@100yds)  32.8 - 8.2
Field of View (m@100m)  10.9 - 2.7
Field of View ()  6.2 - 1.6
Eye Relief (in)  3
Eye Relief (mm)  76
PX/Focus (yds)  10 - ∞
PX/Focus (m)  9 - ∞
Exit Pupil (mm)  11 - 2.8
Exit Pupil (in)  0.43 - 0.11
Weight (oz)  21.9
Weight (g)  621
Length (in)  11.7
Length (mm)  296
Turret Type  Target
Turret Caps  YES
Click Value  1/10 MRAD
Elevation Turret Clicks (max)  20 MRAD
Windage Turret Clicks (max)  20 MRAD
Ocular Type  Fast Focus
Power Selector  Knurled Posi-Grip
Lens Coating  Fully Multi-Coated - 16 Layers
