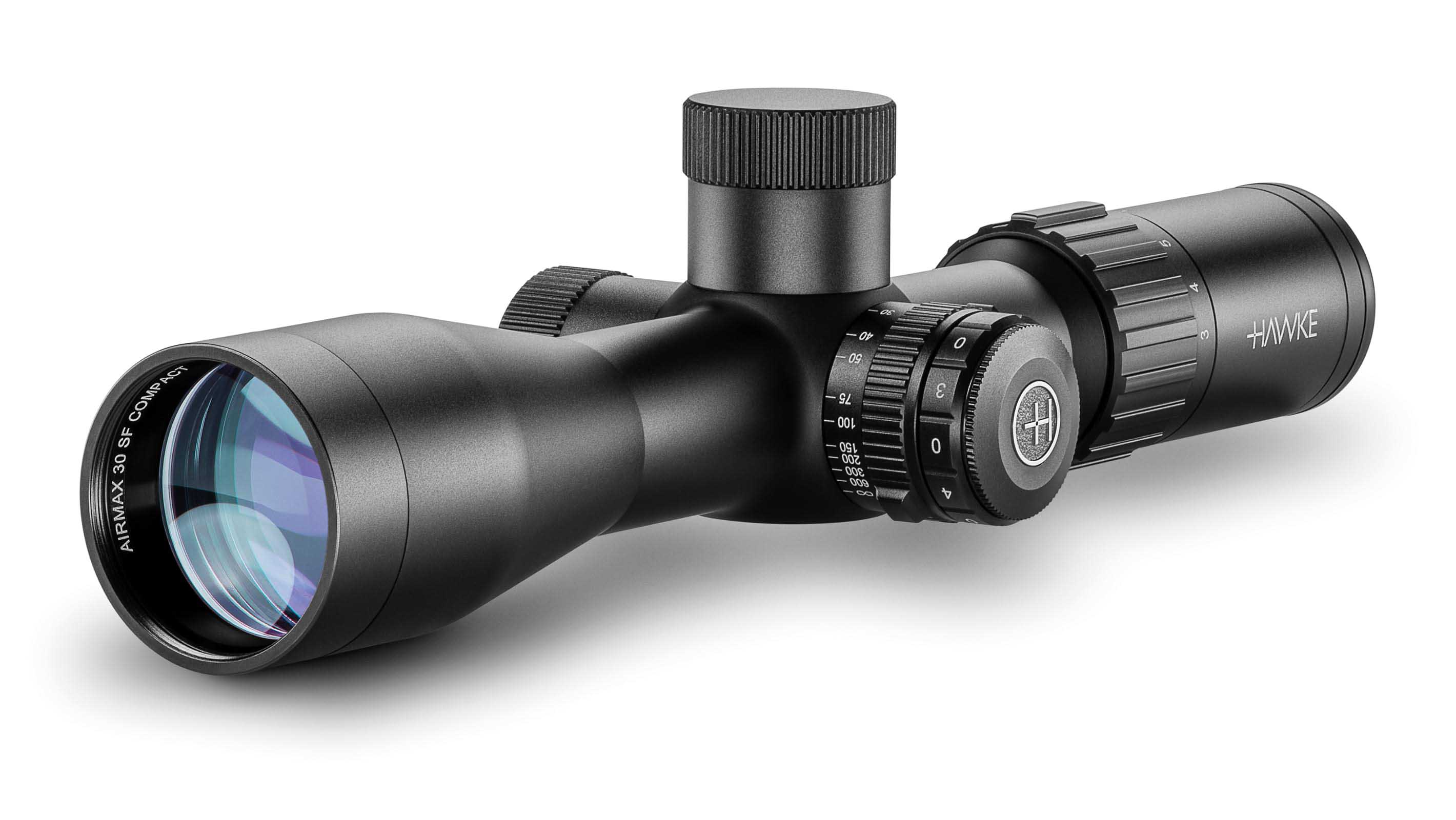

Airmax 30 SF Compact 3-12x40 AMX IR

Model: 13200
Barcode: 5054492132003
No stock, delayed despatch
€299.99

Airmax 30 SF Compact 3-12x40 AMX IR

Model:
13200
Barcode:
5054492132003
€299.99

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing

Product Type
Riflescope
Product Range
Airmax 30 WA SF Compact
Objective Lens
40mm
Reticle
AMX IR
Parallax
Side Focus
Magnification
3 - 12x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
6 Levels with Off Positions In-between - Red
Field of View (ft@100yds)
43.7 - 10.9
Field of View (m@100m)
14.6 - 3.6
Field of View (°)
8.3 - 2.1
Eye Relief (in)
3
Eye Relief (mm)
76
PX/Focus (yds)
10 - ∞
PX/Focus (m)
9 - ∞
Exit Pupil (mm)
13.3 - 3.3
Exit Pupil (in)
0.52 - 0.13
Turret Type
Target
Turret Caps
YES
Click Value
1/10 MRAD
Elevation Turret Clicks (max)
30 MRAD
Windage Turret Clicks (max)
30 MRAD
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 16 Layers
Length (in)
10.9
Length (mm)
277
Weight (oz)
20.8
Weight (g)
589
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Lens Covers
  • 3" Sidewheel
  • CR2032 Battery
