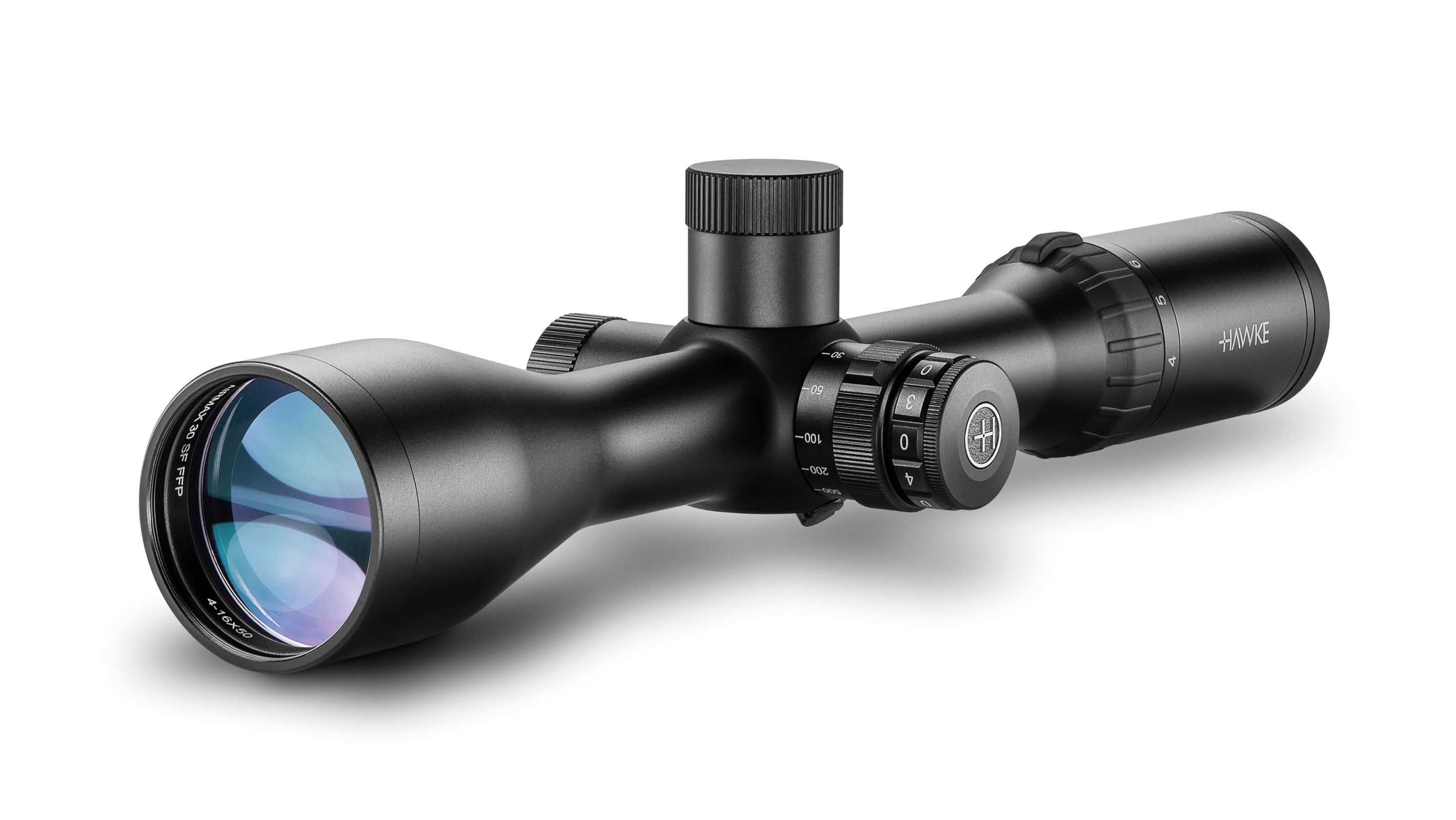

Airmax 30 FFP SF 4-16x50 AMX IR

Model: 13350
Barcode/EAN: 5054492133505

Availability



No stock, delayed despatch

€0.00
Hawke Logo - Roundal

Airmax 30 FFP SF 4-16x50 AMX IR

BUY NOW
Model:  13350
Bar Code:  5054492133505

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • First Focal Plane
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Side wheel (removable)
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


Length:
348mm
13.7"
Weight:
755g
26.6oz
Eye relief:
102mm
4"
Focus/Parallax - Side Focus
9m - ∞
10yds - ∞
Field of View:
10.8 - 2.7m @100m
32.5 - 8.1ft @100yds
Exit Pupil:
12.5-3.1mm
0.49-0.12"
Chassis
30mm Mono-tube
Optical System
4-16x
Objective
50mm
Illumination
Red
Reticle
FFP AMX IR
Elevation Increment
1⁄10 MRAD
Elevation Adjustment Range:
21 MRAD
Windage Increment
1⁄10 MRAD
Windage Adjustment Range
21 MRAD
Material
Aluminium
Ocular Type
Fast Focus
Lens Coating
Fully Multi-Coated - 16 Layers
Power Selector Style
Rubber Coated Posi-Grip
Focal Plane
First Focal Plane (FFP)
Turret Caps
Yes
Turret Type
Target
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • 4" Sunshade
  • Metal Flip-Up Lens Covers
  • Flip-Up Removal Tool
  • 4" Sidewheel
  • Hex Key
  • CR2032 Battery
Product Type  Riflescope
Product Range  Airmax 30 WA FFP
Objective Lens  50mm
Reticle  FFP AMX IR (16x)
Parallax  Side Focus
Magnification  4 - 16x
Optical System  System H2
Focal Plane  FFP (First Focal Plane)
Scope Tube  30mm
Illumination  6 Levels with Off Positions In-between - Red
Field of View (ft@100yds)  32.5 - 8.1
Field of View (m@100m)  10.8 - 2.7
Field of View ()  6.2 - 1.5
Eye Relief (in)  3.5
Eye Relief (mm)  90
PX/Focus (yds)  10 - ∞
PX/Focus (m)  9 - ∞
Exit Pupil (mm)  12.5 - 3.1
Exit Pupil (in)  0.49 - 0.12
Weight (oz)  26.6
Weight (g)  755
Length (in)  13.7
Length (mm)  348
Turret Type  Target
Turret Caps  YES
Click Value  1/10 MRAD
Elevation Turret Clicks (max)  21 MRAD
Windage Turret Clicks (max)  21 MRAD
Ocular Type  Fast Focus
Power Selector  Rubber Coated Posi-Grip
Lens Coating  Fully Multi-Coated - 16 Layers
